China CCD Vision Punching Unit for Pouch Machine - Precision Accessory from Leading Suppliers and Factory

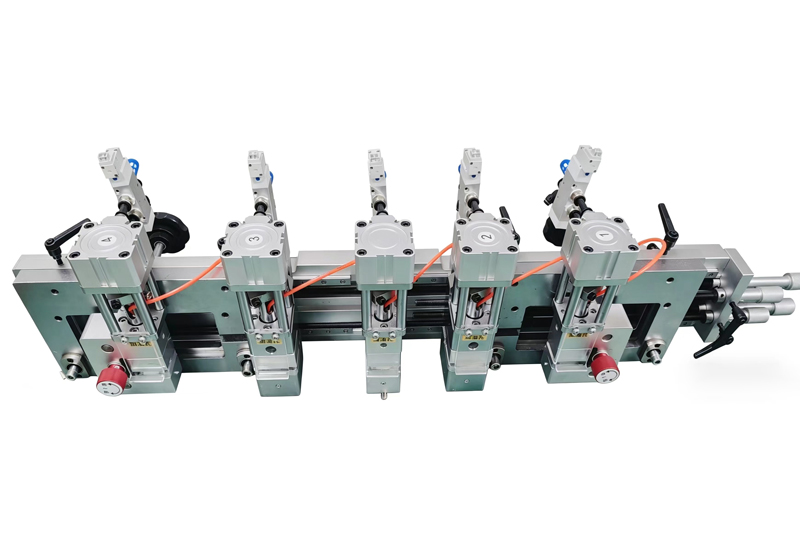

Introducing our advanced CCD vision punching unit, a cutting-edge precision accessory tailored for all full-servo pouch machines. Manufactured in China, this unit utilizes an industrial CCD camera and a servo fine-tuning platform to meticulously track printing marks in real-time. By automatically correcting film offset, it ensures precise punching, eliminating the common misalignment defects seen in traditional punching systems, Compatible with the main PLC control system of the pouch machine, our unit guarantees the production of clean and accurate features such as hanging holes, tear notches, and vent holes, all within a single continuous process. As a leading factory and supplier, we pride ourselves on enhancing the quality of printed pouches, making our CCD vision punching unit an essential upgrade for efficient manufacturing. Experience the difference in quality and precision with our state-of-the-art technology
    Contact us
    Product Details

    Key Advantages
    ✓

    Micron CCD positioning, punching tolerance ±0.02mm, aligned perfectly with pouch printing patterns

    ✓

    XYθ servo auto offset compensation, no frequent manual calibration needed

    ✓

    Synchronized with electronic shaft pouch machine, stable punching at max 220 pcs/min without film wrinkles

    ✓

    Multi-light source, compatible with matte, reflective and multicolor laminated films

    ✓

    Built-in scrap removal to prevent film jam and unplanned downtime

    ✓

    Supports multiple punching molds; mold replacement finished within 10 mins

    ✓

    Safety grating sensor for emergency stop to ensure operation safety

    ✓

    Punching parameters saved on touch screen for one-click quick format switching

    ✓

    Greatly reduce hole-offset defective pouches, cut material waste and rework labor cost

    ✓

    Compact modular design, easy installation and refitting on all pouch machine models

    ✓

    Auto fault diagnosis with clear error prompts on the control touch screen

    ✓

    Works for 5–200μm films for food, cosmetic, medical and pet food pouches

    ✓

    Compact modular integrated design, easy to install and refit on new or existing pouch machine frames, with imported pneumatic and electrical parts for long-term stable service.

    Application Matching
    Compatible with full servo electronic shaft 8-side seal pouch machine, integrated cabinet three-side seal pouch machine and automatic stand-up zipper pouch machine equipped with visual tracking system.
    Frequently Asked Questions (FAQ)
    What is the punching tolerance and accuracy of the system?
    The system features micron CCD positioning, achieving a precise punching tolerance of ±0.02mm, which aligns perfectly with pouch printing patterns.
    What is the maximum operating speed of the punching system?
    It is synchronized with the electronic shaft pouch machine to achieve stable punching at a maximum speed of 220 pcs/min without causing film wrinkles.
    What types of packaging films are compatible with this equipment?
    The system is compatible with 5–200μm films, including matte, reflective, and multicolor laminated films commonly used for food, cosmetic, medical, and pet food pouches.
    How long does it take to change the punching molds?
    The system supports multiple punching molds, and the mold replacement process can be completed quickly within 10 minutes.
    Can this system be installed on my existing pouch making machine?
    Yes, it features a compact modular integrated design that allows for easy installation and refitting on all new or existing pouch machine frames.
    How does the system prevent film jams and minimize downtime?
    It includes a built-in scrap removal system to prevent film jams, along with auto fault diagnosis and clear error prompts on the control touch screen for quick troubleshooting.
