China DZF-600-800IIIT Three Side Sealing Bag Making Machine - Top Suppliers & Factory for High-Speed Packaging Solutions
Hot Products

China DZF-600-800IIIT Three Side Sealing Bag Making Machine - Top Suppliers & Factory for High-Speed Packaging Solutions

,

Applicable products: Three side sealing pouch, three side sealing bag

,

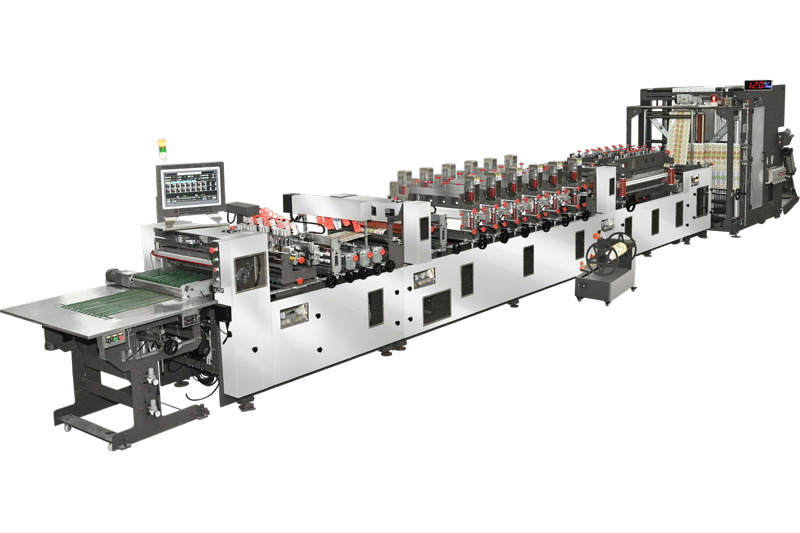

Introducing our Heavy-Duty High-Speed Three Side Sealing Bag Making Machine, a leading solution from China that combines the advantages of both domestic and international manufacturing technology. Designed for the flexible packaging market, this machine utilizes a synergy of light, electricity, and gas, all powered by multiple servo motors, making it a highly efficient, low-noise operation.

,

As one of the top suppliers in the industry, we offer an integrated cabinet design that not only meets industry standards but also enhances functionality with features such as a CCD visual inspection system. This design ensures neat wiring, effective dust prevention, and significant noise reduction. Our fully servo synchronous drive system provides real-time CCD pattern tracking correction, allowing for precise registration, sealing, rounding, cutting, and automatic rejection of defective bags.

,

This advanced technology results in high precision for printed films, making it ideal for producing quality three side seal bags for various applications, including food packaging, daily chemicals, pharmaceuticals, and electronic accessories. Choose our factory for reliable, high-quality packaging solutions that elevate your production capabilities.

,

    Specification

    Materials
    BOPP, PET, PA, aluminum film and other plastic composite and paper plastic composite.
    Bagging Speed
    Mechanical design speed 300 sections/min, about 45 M.
    Main Machine Drive
    Servo motor drive (Panasonic Brand)
    Application Industries
    Packaging bags for food, daily chemicals, chemical industry and animal feed.
    Equipment Size
    11.4m x 1.4m
    Equipment Weight
    6t
    Total Power
    45KW

    Function Configuration Details

    Include Function

    • CCD
    • Trim Collector

    Optional Parts

    • Electronic Shaft Automatic sealing bar Positioning System
    • Visual Electronic Shaft Automatic sealing bar Positioning System
    • Die-cutting Machine
    • Dual feeding; Dual Tracking for Top & Bottom Pattern Registration for film
    • Non-stop unwinding material

    Key Advantages

    1

    Full Electronic Shaft Synchronous Drive

    Independent servo motors control each working station synchronously; zero mechanical backlash, ±0.1mm high precision for bag length, zipper and bottom alignment.

    2

    Automatic Bottom Insert Mechanism

    One-step bottom gusset feeding & forming without secondary manual processing; uniform bottom support for upright display of pouches.

    3

    High-Speed & Stable Operation

    Continuous production speed reaches 300sections/min, low failure rate and less film waste.

    4

    Intelligent PLC Touch Control

    Chinese & English bilingual touch screen; one-click preset of speed, length, sealing temperature and batch counting. Equipped with EPC web guide and constant tension control for smooth film feeding.

    5

    Versatile & Easy Conversion

    Quick mold change to switch pouch sizes; optional accessories: hang hole punch, tear notch, double cutting unit.

    6

    Reliable Sealing Quality

    Multi-layer heating sealing system, strong airtight seal without leakage, suitable for vacuum and moisture-proof packaging demands.

    7

    Global Standards & Support

    CE certified, imported electric parts, remote after-sales support.

    Frequently Asked Questions

    What materials can this bagging machine process?
    The equipment processes BOPP, PET, PA, aluminum film, and other plastic composite as well as paper plastic composite materials.
    What is the production speed and capacity of the machine?
    The machine has a mechanical design speed of up to 300 sections per minute, which is equivalent to approximately 45 meters per minute.
    Which industries are best suited for this packaging equipment?
    It is widely applied in packaging bags manufacturing for food, daily chemicals, the chemical industry, and animal feed.
    What drive system does the main machine use?
    The main machine adopts a highly reliable and precise servo motor drive system from the Panasonic brand.
    Are there optional configurations available for customization?
    Yes, optional parts include the Electronic Shaft Automatic sealing bar Positioning System (standard or visual), Die-cutting Machine, dual feeding with Dual Tracking for Top & Bottom Pattern Registration, and Non-stop unwinding material systems.
    Is this machinery certified for global markets?
    Yes, the equipment is fully CE certified, utilizes imported electrical parts for stability, and comes with remote after-sales support.
