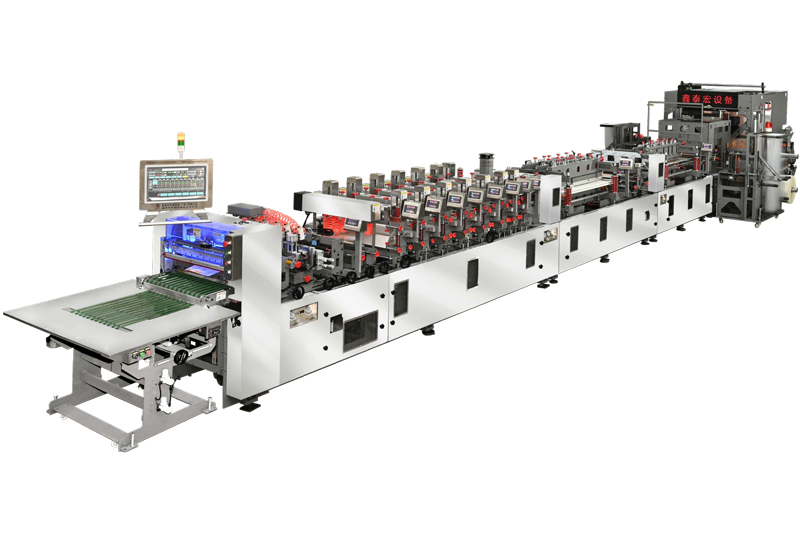

DZF-500-1000TSZ-Electronic-Shaft-Bottom-insertion-Stand-up-Zipper-Bag-Making-Machine-with-CCD.jpg

China Suppliers Factory DZF-500-1000TSZ Electronic Shaft Stand-Up Zipper Bag Making Machine with CCD Technology

,

Applicable products: Doypack, stand-up bag, zipper bag, four side sealing pouch, three side sealing pouch.

,

The electronic shaft stand-up pouch making machine, also referred to as the full-servo shaftless stand-up pouch machine, represents high-end automatic bag-making technology in the flexible packaging industry. As a leading supplier in China, our factory employs advanced electronic shaft transmission technology, eliminating traditional mechanical main shafts, gears, and linking structures. This innovative design ensures each functional unit operates independently with dedicated servo motors, allowing for precise and synchronized movements controlled by an electronic program.

,

Our machine enhances bag-making efficiency, achieving high-precision film feeding, accurate printing registration, reliable side sealing, precise bottom folding, effective spout inserting, efficient cutting, and waste winding. Compared to conventional mechanical transmission machines, our solution significantly improves bag precision and production stability, making it an ideal choice for manufacturers seeking quality and reliability in packaging. Choose our China-based factory for cutting-edge stand-up pouch machinery.

,
    Contact us
    Product Details

    specification

    Materials
    BOPP, PET, PA, aluminum film and other plastic composite and paper plastic composite.
    Bagging speed
    mechanical design speed 180 sections/min, about 45 M.
    Main machine adopts
    servo motor drive (Panasonic Brand)
    Application Industries
    Common flat bottom stand-up bags, Stand-up pouches with spout (liquid packaging for juice, detergent, beverage), Zipper stand-up pouches (food, snacks, pet food), Window stand-up bags, aluminum foil stand-up pouches
    Equipment size
    17.5m X 2.9m
    Equipment weight
    7.5t
    Total power of equipment
    75KW

    Function Configuration Details

    Include function
    • Electronic Shaft Automatic sealing bar Positioning System
    • CCD
    • double insertion device
    • double zipper
    • Non-stop material unwinding
    • Trim Collector
    Optional Parts
    • Visual Electronic Shaft Automatic sealing bar Positioning System
    • Die-cutting Machine
    • dual feeding; Dual Tracking for Top & Bottom Pattern Registration for film

    Key Advantages

    ✓
    Full servo electronic shaft drive system for all stations
    ✓
    PLC + touch screen centralized operation panel
    ✓
    Automatic color mark photo-eye tracking system
    ✓
    Constant tension unwinding & rewinding mechanism
    ✓
    Independent bottom folding unit for stand-up pouch base
    ✓
    Optional zipper attachment unit / spout inserting unit
    ✓
    Hot air sealing, cooling shaping, automatic slitting & finished bag collection
    ✓
    Waste film automatic winding device
    ✓
    CE certified, imported electric parts, remote after-sales support

    Frequently Asked Questions

    Q1: What materials are compatible with this stand-up pouch making machine?

    A1: The machine is highly versatile and supports various materials including BOPP, PET, PA, aluminum film, and other plastic composite or paper-plastic composite films.

    Q2: What is the maximum production speed of this machine?

    A2: The mechanical design speed reaches up to 180 sections per minute, which translates to a running speed of approximately 45 meters per minute.

    Q3: What types of pouches and packaging industries can use this equipment?

    A3: It is ideal for producing common flat bottom stand-up bags, stand-up pouches with spouts (for liquid packaging like juice, detergent, and beverages), zipper stand-up pouches (for food, snacks, and pet food), window stand-up bags, and aluminum foil stand-up pouches.

    Q4: What brand of servo motor drive does the main machine utilize?

    A4: The main machine utilizes a high-performance servo motor drive from the trusted Panasonic Brand.

    Q5: Are there optional configurations available for specific manufacturing needs?

    A5: Yes, optional configurations include a Visual Electronic Shaft Automatic sealing bar Positioning System, a Die-cutting Machine, and dual feeding with Dual Tracking for Top & Bottom Pattern Registration for film.

    Q6: What certifications and support come with this equipment?

    A6: The equipment is fully CE certified, features imported electric parts for optimal reliability, and is backed by remote after-sales support.
