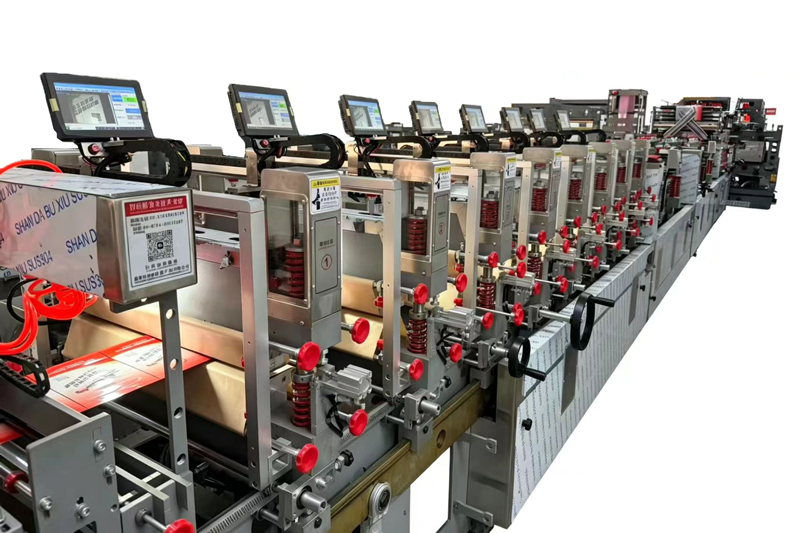

China Suppliers Factory DZF-600-1200ⅢE Vision Electronic Shaft Auto Slitter for Flat Bottom Pouch Production

,

Applicable products: Flat bottom pouches, eight side sealing bags, three side sealing bags

,

Introducing our Heavy-Duty High-Speed Flat Bottom Pouch Making Machine, a leading solution from China that combines the advantages of both domestic and international manufacturing techniques. This advanced machine integrates light, electricity, and gas, and is powered by multiple servo motors, making it a premium choice for the flexible packaging market. The machine is designed for low noise operation and high-speed production.

,

Our Vision Electronic Shaft Auto Slitter 8-Side Seal Pouch Machine features full electronic shaft synchronous control along with a CCD visual positioning system. This setup is complemented by an automatic row cutting tool assembly that ensures precise slitting, gusset forming, sealing, and shaping of 8-side seal pouches in a single continuous workflow. The machine expertly calibrates cutting positions through real-time printed pattern tracking, effectively removing dimensional deviations often seen with manual tool adjustments. As a result, you can rely on consistently high-quality finished pouches, ideal for packaging food, pet food, and daily chemical products. Trust in our expertise as a top supplier and factory for flexible packaging solutions in China.

,
    Contact us
    Product Details

    Specification

    Materials
    BOPP, PET, PA, aluminum film and other plastic composite and paper plastic composite.
    Bagging Speed
    Mechanical design speed 80-100 sections/min, about 45 M.
    Main Machine Adopts
    Servo motor drive (Panasonic Brand)
    Application Industries
    Packaging bags for food, daily chemicals, chemical industry and animal feed
    Equipment Size
    23.6m X 3.6m
    Equipment Weight
    12t
    Total Power
    100KW

    Function Configuration Details

    Included Functions

    • Visual Electronic Shaft Automatic sealing bar Positioning System
    • Trim Collector
    • Ultrasonic deive
    • Non-stop material unwinding
    • Dual feeding; Dual Tracking for Top & Bottom Pattern Registration for film

    Optional Parts

    • Electronic Shaft Automatic sealing bar Positioning System
    • Die-cutting Machine
    • 45-degree Angle Folding

    Key Advantages

    Full electronic shaft synchronous drive, all stations coordinated, dimensional tolerance controlled within ±0.1mm
    Visual Electronic Shaft Automatic sealing bar Positioning System real-time tracking, auto position correction for slitting tools to match printed patterns precisely
    Automatic row cutting unit, one-key tool positioning without repeated manual calibration, greatly saving mold switching time
    Stable high-speed operation, maximum production speed up to 80 pcs/min with low reject rate
    Independent dual temperature sealing system, wrinkle-free and airtight sealing edges
    PLC bilingual touch screen, all cutting and production parameters stored for one-click recall
    Compact integrated structure, low energy consumption, stable operation and wide film material compatibility

    Frequently Asked Questions

    What materials are compatible with this equipment?
    The machine is compatible with BOPP, PET, PA, aluminum film, and other plastic composite and paper plastic composite materials.
    What is the bagging and production speed of this machine?
    The mechanical design speed is 80-100 sections/min (about 45 M), and it achieves a stable maximum production speed of up to 80 pcs/min.
    What brand of servo motor drive does the main machine use?
    The main machine is equipped with a high-performance Panasonic Brand servo motor drive.
    What are the physical dimensions and power requirements of the equipment?
    The equipment has a size of 23.6m X 3.6m, a weight of 12t, and a total power requirement of 100KW.
    How precise is the synchronous drive system?
    Thanks to the full electronic shaft synchronous drive, all stations are coordinated to control dimensional tolerance within ±0.1mm.
    What optional parts are available for customization?
    Optional parts include the Electronic Shaft Automatic sealing bar Positioning System, Die-cutting Machine, and 45-degree Angle Folding.
