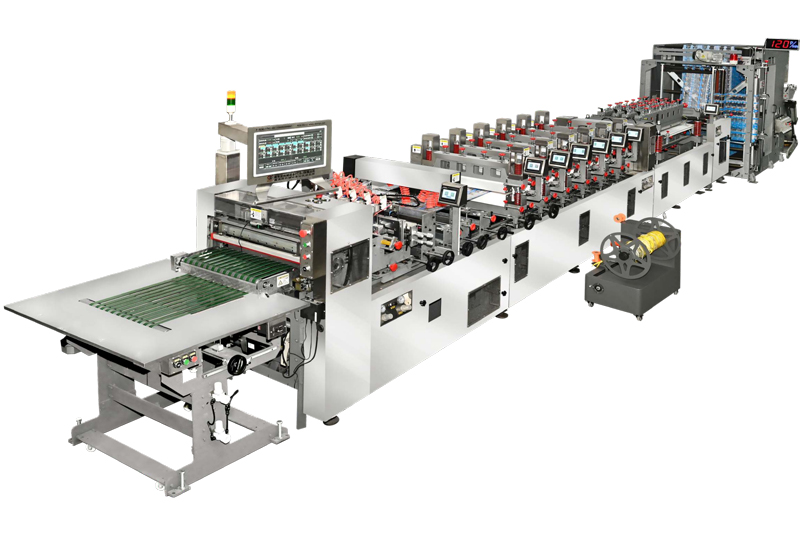

China Suppliers Factory DZF-600-800IIIT Electronic Shaft Three Side Sealing Bag Making Machine with CCD Technology

,

Applicable products: Three-side sealing pouches, three-side sealing bags

,

Introducing our advanced electronic shaft three-side seal bag making machine, a high-precision automatic flexible packaging solution manufactured by a leading factory in China. This innovative equipment employs cutting-edge full-servo shaftless electronic shaft drive technology, eliminating traditional mechanical components such as main shafts, gears, and connecting rods. Each operating station is powered by independent servo motors, ensuring that all movements are electronically synchronized through a robust PLC program.
Our machine efficiently carries out a series of continuous processes—including film unwinding, tension control, color mark tracking, side sealing, cross sealing, slitting, and finished bag collection—in a single operation. It is specifically designed for the seamless production of standard three-side sealed composite bags. Connect with top suppliers in China and enhance your packaging capabilities with our reliable machinery.

,
    Contact us
    Product Details

    Specification

    Materials
    BOPP, PET, PA, aluminum film and other plastic composite and paper plastic composite.
    Bagging Speed
    Mechanical design speed 300 sections/min, about 56 M.
    Main Machine Drive
    Servo motor drive (Panasonic Brand)
    Application Industries
    Packaging bags for food, daily chemicals, chemical industry and animal feed
    Equipment Size
    12m X 1.8m
    Equipment Weight
    5.5t
    Total Power
    45KW

    Function Configuration Details

    Included Function
    • Electronic Shaft Automatic sealing bar Positioning System
    • CCD
    • Non-stop material unwinding
    • Trim Collector
    Optional Parts
    • Visual Electronic Shaft Automatic sealing bar Positioning System
    • Die-cutting Machine
    • Dual feeding; Dual Tracking for Top & Bottom Pattern Registration for film

    Key Advantages

    Ultra-high dimensional accuracy

    Independent servo control for each station; bag length and sealing position tolerance within ±0.1mm, uniform sealing pattern.

    Quick size conversion

    No mechanical gear adjustment required. Simply input bag width, length and sealing parameters on touch screen to switch specifications rapidly, greatly cutting mold change downtime.

    Stable high-speed production

    Less mechanical friction and vibration at high running speed, low defective rate, extended service life of sealing knives.

    Intelligent tension & registration control

    Automatic constant tension unwinding/rewinding, high-precision photo-eye color mark tracking, effectively preventing film stretching, wrinkling and registration deviation.

    Low noise & energy saving

    Simplified mechanical transmission structure reduces power consumption and workshop noise.

    Certifications & Components

    CE certified, imported electric parts, and remote after-sales support for long-term operations.

    Frequently Asked Questions

    What packaging materials are compatible with this equipment?
    This machine is compatible with BOPP, PET, PA, aluminum film, and other plastic composites as well as paper-plastic composite materials.
    What is the production speed and size of the machine?
    The mechanical design speed is 300 sections per minute (approximately 56 meters). The physical size of the equipment is 12m X 1.8m, and it weighs 5.5t.
    What brand of motor drive does the machine use?
    The main machine utilizes a high-quality servo motor drive from the Panasonic brand.
    What are the included functions vs. the optional configuration parts?
    Included functions feature the Electronic Shaft Automatic sealing bar Positioning System, CCD, Non-stop material unwinding, and a Trim Collector. Optional parts include the Visual Electronic Shaft Automatic sealing bar Positioning System, Die-cutting Machine, and dual feeding / Dual Tracking for Top & Bottom Pattern Registration.
    How does the machine guarantee high dimensional accuracy?
    It features independent servo control for each station. This maintains the bag length and sealing position tolerance within ±0.1mm, ensuring a uniform sealing pattern.
    Does the equipment have safety certifications and after-sales support?
    Yes, the equipment is CE certified, constructed with imported electrical components, and comes with remote after-sales support.
