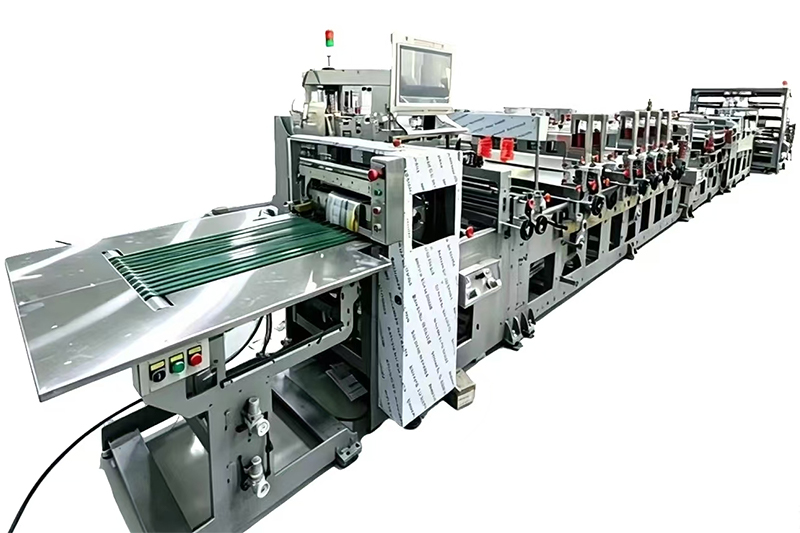

DZF-600-800IIIT Center Sealing Bag Making Machine
Bag Making Machine
DZF-600-800IIIT Center Sealing Bag Making Machine.jpg

DZF-600-800IIIT Center Sealing Bag Making Machine

Applicable products: Center sealing bag, three side sealing bag

The center seal bag making machine is a fully automatic flexible packaging machine specially designed for producing back-sealed bags. Adopting mature mechanical synchronous transmission structure, it realizes continuous integrated production via a single main drive shaft.
The whole production flow covers film unwinding, tension adjustment, central folding forming, longitudinal center sealing, transverse sealing, photoelectric color mark tracking, slitting and finished bag collection. Its signature feature is a vertical sealing seam at the middle rear of the bag to form the bag body, widely used for powder and granular packaging bags and food bags

    Contact us
    product details

    specification

    Materials: BOPP, PET, PA, aluminum film and other plastic composite and paper plastic composite.
    Bagging speed: mechanical design speed 280 sections/min, about 45 M.
    The main machine adopts: servo motor drive（Panasonic Brand)
    Application Industries: Packaging bags for food, daily chemicals, chemical industry and animal feed
    Equipment size：13.5m X1.4m
    Equipment weight：5.6t
    Total power of equipment：62KW

    Standard Equipment Configuration

    ● Main shaft mechanical synchronous transmission system
    ● PLC + human-machine touch screen centralized control
    ● High-precision photoelectric color mark tracking sensor
    ● Automatic constant tension unwinding and waste winding mechanism
    ● Special central folding forming assembly for back seal bags
    ● Longitudinal vertical sealing unit + transverse cross sealing unit with cooling shaping
    ● Automatic slitting, counting and finished bag stacking device
    ● Optional attachments: hanging hole punch, easy-tear notch, exhaust valve fitting unit

    Key Advantages

    ·  Stable and Reliable Operation Standard mechanical linkage transmission with mature technology, low failure rate, easy maintenance and long service life for daily mass production.
    ·  Simple Operation & Low Operation Threshold Equipped with PLC touch screen control system. Operators can set bag length, speed and sealing temperature directly on the screen, easy to learn and master.
    ·  Cost-Effective Investment Compared with full electronic shaft models, this machine has a more competitive price and lower purchase cost, ideal for small and medium packaging factories.
    ·  Complete Intelligent Auxiliary Functions Built-in constant tension unwinding and rewinding system, matched with high-precision color mark sensor to guarantee stable bag length and accurate printing registration, effectively avoid film wrinkling and stretching.
    ·  Flexible Customization Multiple optional auxiliary units can be installed according to customer demands to expand production capacity.
    ·CE certified, imported electric parts, remote after-sales support
