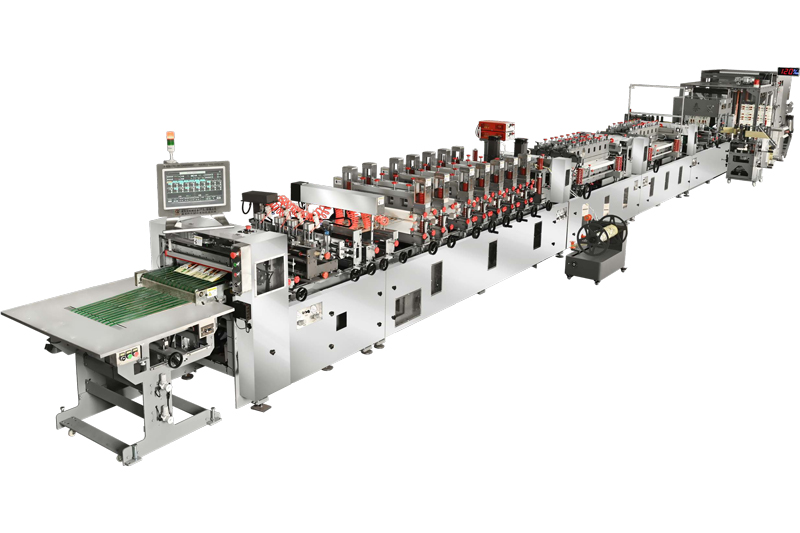

DZF-500-1000TSZ-Multi-function-Bottom-insertion-Stand-up-Zipper-Bag-Making-Machine-with-CCD.jpg

Multi-Function Stand-Up Zipper Bag Making Machine - High-Speed China Suppliers & Factory DZF-500-1000TSZ

,

Applicable products: Doypack, stand-up bag, zipper bag, four side sealing pouch, three side sealing pouch.

,

The Heavy-duty High-speed Multi-function Stand-up Pouch Making Machine is a top-tier solution for packaging manufacturers looking to enhance efficiency and quality. Manufactured in China, this machine integrates advanced features from both domestic and international suppliers, offering a perfect blend of light, electricity, and gas integration. Driven by multiple servo motors, it is designed to operate with minimal noise and at high speeds, making it an essential tool for the flexible packaging industry.

,

This high-efficiency and cost-effective packaging machine is strongly recommended for global flexible packaging production lines. It enables manufacturers to significantly boost production capacity, minimize raw material waste, reduce reliance on labor, and improve overall product quality. As a leading factory in the field, we provide this reliable equipment that serves as the ideal cornerstone for mid-to-high-end flexible packaging production.

,
    Contact us
    Product Details

    Specification

    Materials BOPP, PET, PA, aluminum film and other plastic composite and paper plastic composite
    Bagging Speed Mechanical design speed 180 sections/min, about 45 M
    Main Machine Drive Servo motor drive (Panasonic Brand)
    Application Industries Packaging bags for food, daily chemicals, chemical industry and animal feed
    Equipment Size 17.5m x 2.9m
    Equipment Weight 7.5t
    Total Power 75KW

    Function Configuration Details

    Included Functions
    • CCD
    • Double insertion device
    • Double zipper
    • Non-stop material unwinding
    • Trim Collector
    Optional Parts
    • Visual Electronic Shaft Automatic sealing bar Positioning System
    • Electronic Shaft Automatic sealing bar Positioning System
    • Die-cutting Machine
    • Dual feeding; Dual Tracking for Top & Bottom Pattern Registration for film

    Key Advantages

    1
    Full Electronic Shaft Synchronous Drive
    Independent servo motors control each working station synchronously; zero mechanical backlash, ±0.1mm high precision for bag length, zipper and bottom alignment.
    2
    Automatic Bottom Insert Mechanism
    One-step bottom gusset feeding & forming without secondary manual processing; uniform bottom support for upright display of pouches.
    3
    High-Speed & Stable Operation
    Continuous production speed reaches 80–130 pcs/min, low failure rate and less film waste.
    4
    Intelligent PLC Touch Control
    Chinese & English bilingual touch screen; one-click preset of speed, length, sealing temperature and batch counting. Equipped with EPC web guide and constant tension control for smooth film feeding.
    5
    Versatile & Easy Conversion
    Quick mold change to switch pouch sizes; optional accessories: hang hole punch, tear notch, double cutting unit.
    6
    Reliable Sealing Quality
    Multi-layer heating sealing system, strong airtight seal without leakage, suitable for vacuum and moisture-proof packaging demands.
    7
    Certification & Support
    CE certified, imported electric parts, and remote after-sales support.

    Frequently Asked Questions (FAQ)

    What materials are compatible with this bagging machinery?
    This machine is compatible with a wide range of materials, including BOPP, PET, PA, aluminum film, other plastic composites, and paper-plastic composite materials.
    What is the production speed and capacity of the equipment?
    The mechanical design speed of the machine reaches up to 180 sections per minute, which translates to approximately 45 meters of film processing per minute.
    What brand of motor drive does the main system utilize?
    The main machine relies on a high-performance, synchronous servo motor drive system manufactured by the Panasonic brand.
    Which industries typically use this packaging equipment?
    It is highly suitable for manufacturing packaging bags across various fields, including food, daily chemicals, the chemical industry, and animal feed.
    What options are available for the sealing positioning system?
    Optional configurations include a Visual Electronic Shaft Automatic sealing bar Positioning System as well as a standard Electronic Shaft Automatic sealing bar Positioning System for precise registration.
    Does the equipment meet international standards and offer technical support?
    Yes, the machine is CE certified, incorporates imported electric components for durability, and is backed by remote after-sales technical support.
